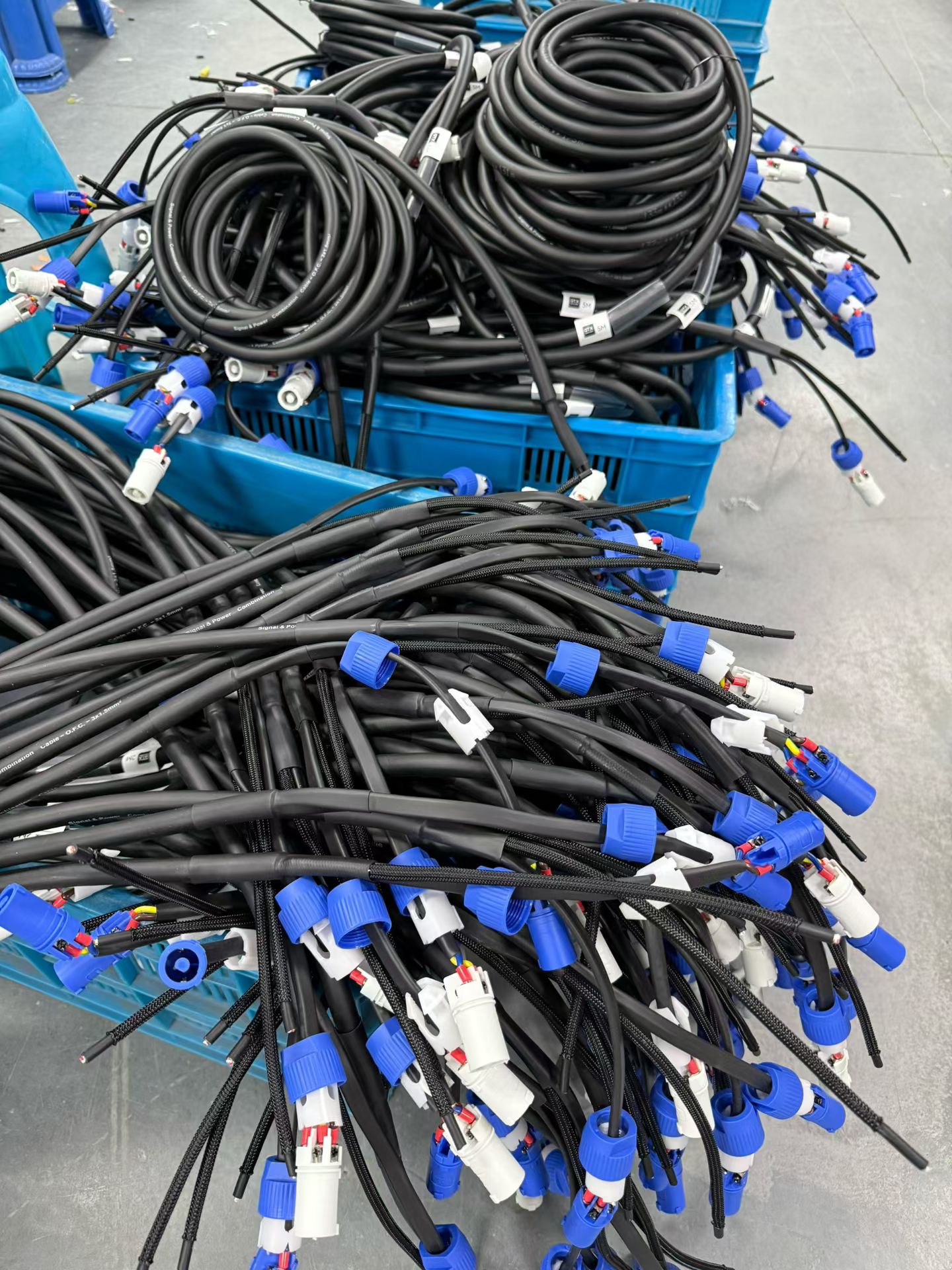

Streamline your stage lighting and LED display setups with our PowerCon TRUE1 + 3-Pin XLR DMX Combo Cable — the ultimate hybrid solution for professionals who demand both high-current power and reliable digital control in a single, rugged cable. Designed for moving head lights, beam fixtures, PAR cans, and large-scale video walls, this 20A 250V power + DMX512 signal cable eliminates the need for separate power and data runs, reducing clutter and setup time.
✅ Key Features for Global Buyers:
- Dual-Function Design: Combines Neutrik-style PowerCon TRUE1 locking power connector (blue) with standard 3-pin XLR DMX connector (white) — compatible with most professional lighting consoles and fixtures.
- High Current Capacity: Rated for 20 Amps at 250V AC, suitable for high-power LED arrays and motorized fixtures without voltage drop or overheating.
- Noise-Immune DMX Transmission: Uses shielded twisted-pair conductors for DMX512 signal integrity — prevents flickering, dropouts, or erratic behavior even in electrically noisy environments.
- Durable Construction: Outer jacket made of flexible PVC or braided nylon for abrasion resistance; ideal for touring, outdoor events, and permanent installations.
- Color-Coded & Locking: Blue PowerCon input/output ensures correct polarity and prevents accidental disconnection; white XLR connector follows industry-standard DMX pinout (Pin 1: GND, Pin 2: Data-, Pin 3: Data+).
| Connector Type | Wire Gauge | Voltage Rating | Current Rating | Application |
|---|---|---|---|---|
| PowerCon TRUE1 (Blue) | 3×2.5mm² | 250V AC | 20A | High-power stage lights, LED walls |
| 3-Pin XLR (White) | 2×0.5mm² (DMX) | 30V DC | 0.5A | DMX512 control signal transmission |
This combo cable is perfect for rental companies, production houses, and venue technicians seeking to reduce cable count, minimize tripping hazards, and accelerate rigging. Whether you’re wiring a concert stage, theater, or corporate event, this hybrid cable delivers the reliability and efficiency that modern entertainment technology demands. Search terms: PowerCon DMX combo cable, stage light power signal hybrid, 20A DMX extension cord, TRUE1 XLR combo wire, LED display power data cable.
