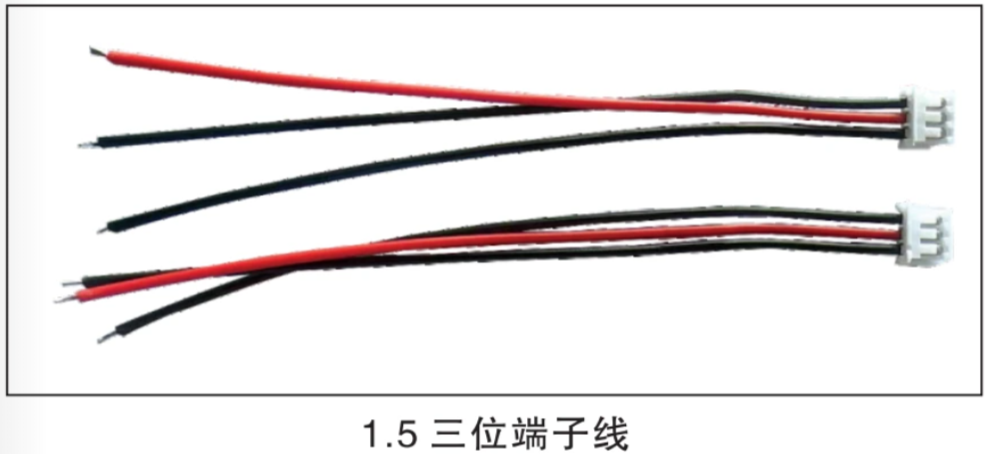

1.5mm 3-Pin Terminal Wire Harness for Compact PCB and Device Internal Wiring

Detail

Looking for a compact, reliable wire harness for your compact electronics? Our 1.5mm 3-pin terminal wire is engineered for high-density applications where space is limited — perfect for smartphones, wearables, IoT modules, and medical devices. Featuring precision 1.5mm pitch connectors and UL-certified PVC insulation, this wire ensures stable signal and power delivery while meeting global safety standards. Ideal for OEMs, engineers, and DIY makers seeking durable, space-saving interconnect solutions.

✅ Key Features for Global Buyers:

Ultra-Compact 1.5mm Pitch: Fits tight spaces in modern electronics without sacrificing connection reliability.
3-Pin Configuration: Supports power, ground, and signal lines in a single cable — ideal for sensors, displays, and control boards.
Durable Materials: High-flex PVC jacket and tinned copper conductors resist corrosion and ensure long-term performance.
Customizable Lengths & Colors: Available in standard or custom lengths with red/black/white color coding for easy identification.

Wire Gauge (AWG)	Insulation Material	Connector Type	Pitch (mm)	Pin Count	Voltage Rating	Current Rating
28–24 AWG	PVC	1.5mm Terminal	1.5	3	300V	3A

This 1.5mm 3-pin terminal wire is compatible with JST SH, Molex PicoBlade, and similar 1.5mm pitch connectors — making it a versatile choice for prototyping and mass production. Whether you’re building a smartwatch, drone controller, or industrial sensor node, this wire harness delivers the reliability you need in a tiny footprint.

Available Opposite End

1.）International Standards IEC 60320

IEC 60320 is a set of standards specifying power cords appliances up to 250 volts. Though different country owns different power cord types and standards, the IEC 60320 is recognized as an international standard used by most countries in the world. The “C” represents the code standard for connectors made by IEC 60320. Different types of connector are specified for different combinations of current, voltage and temperature.

International Standards IEC 60320

2.)Normal Stripped, Splitter and ROJ

The other end can be stripped, ROJ with custom length.

Splitter and ROJ

3.）Riveted terminal

Termination

PACKAGE

Internal Packaging:
1. 5/10 pieces each bundle (or according to length)
2. PP bags and vacuum package as per request

External Packaging:
1. Usually, we use high quality export carton to package the power cord.
2. Carton size: 52*30*22CM/ 43*30*28CM/ 43*30*24CM or customized
3. Packing (pcs/carton): It depends on the types of power cords and the length of power cords.
4. Or according to per customers’ requirement, we can customize a new size carton in order to help customers save shipping fee.

P.S. Other special requirements are also available.
INQUIRY RULES
1. Please inform me the cord type of cable you want, such as 0.75 mm2 or 1.0 mm2;
2. Please make sure the length of wire you want, such as 3 ft’ or 6 ft’;
3. Please tell me the color you want, such as black, white or orange;
4. If you have special requirement of packaging, please tell me
