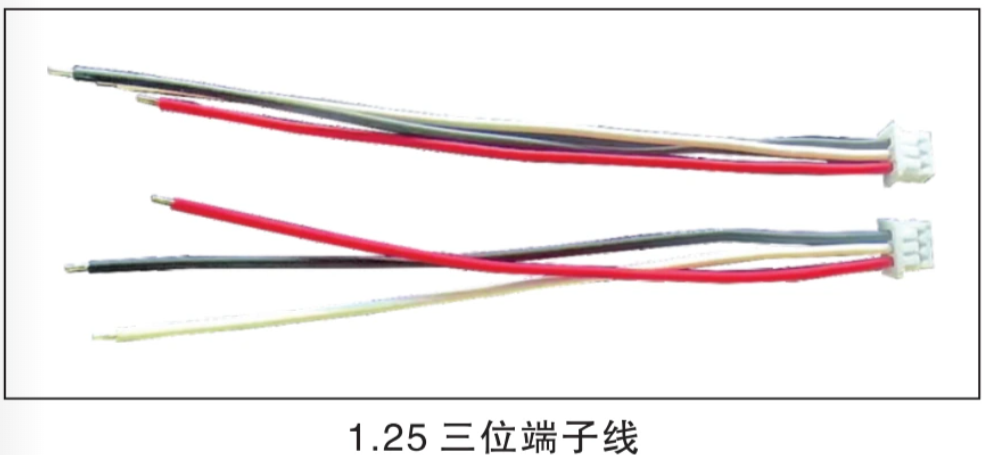

1.25mm 3-Pin Terminal Wire Harness for High-Density PCB and Device Internal Wiring

Detail

Looking for a compact, reliable wire harness for your compact electronics? Our 1.25mm 3-pin terminal wire is engineered for high-density applications where space is limited — perfect for smartphones, wearables, IoT modules, and medical devices. Featuring precision 1.25mm pitch connectors and UL-certified PVC insulation, this wire ensures stable signal and power delivery while meeting global safety standards. Ideal for OEMs, engineers, and DIY makers seeking durable, space-saving interconnect solutions.

✅ Key Features for Global Buyers:

Ultra-Compact 1.25mm Pitch: Fits tight spaces in modern electronics without sacrificing connection reliability.
3-Pin Configuration: Supports power, ground, and signal lines in a single cable — ideal for sensors, displays, and control boards.
UL1007/UL1571 Certified: Flame-retardant PVC insulation rated for 300V and 80°C continuous operation.
Tinned Copper Conductors: Resists oxidation and ensures low-resistance, long-term conductivity.
Customizable Length & Color: Available in standard lengths (80mm–300mm) with red/black/white or custom color coding for easy identification.

Wire Gauge	Insulation Standard	Current Rating	Voltage Rating	Temperature Range
28AWG (0.08mm²)	UL1007 / UL1571	1A AC/DC	300V AC/DC	-25°C to +80°C
26AWG (0.13mm²)	UL1007 / UL1571	1.5A AC/DC	300V AC/DC	-25°C to +80°C
24AWG (0.20mm²)	UL1007 / UL1571	2A AC/DC	300V AC/DC	-25°C to +80°C

This terminal wire is compatible with Molex PicoBlade 51021 series connectors and widely used in battery packs, LED drivers, camera modules, and smart home devices. Whether you’re prototyping or scaling production, our 1.25mm 3-pin terminal wire delivers the precision, durability, and compliance your project demands.

Available Opposite End

1.）International Standards IEC 60320

IEC 60320 is a set of standards specifying power cords appliances up to 250 volts. Though different country owns different power cord types and standards, the IEC 60320 is recognized as an international standard used by most countries in the world. The “C” represents the code standard for connectors made by IEC 60320. Different types of connector are specified for different combinations of current, voltage and temperature.

International Standards IEC 60320

2.)Normal Stripped, Splitter and ROJ

The other end can be stripped, ROJ with custom length.

Splitter and ROJ

3.）Riveted terminal

Termination

PACKAGE

Internal Packaging:
1. 5/10 pieces each bundle (or according to length)
2. PP bags and vacuum package as per request

External Packaging:
1. Usually, we use high quality export carton to package the power cord.
2. Carton size: 52*30*22CM/ 43*30*28CM/ 43*30*24CM or customized
3. Packing (pcs/carton): It depends on the types of power cords and the length of power cords.
4. Or according to per customers’ requirement, we can customize a new size carton in order to help customers save shipping fee.

P.S. Other special requirements are also available.
INQUIRY RULES
1. Please inform me the cord type of cable you want, such as 0.75 mm2 or 1.0 mm2;
2. Please make sure the length of wire you want, such as 3 ft’ or 6 ft’;
3. Please tell me the color you want, such as black, white or orange;
4. If you have special requirement of packaging, please tell me
